Visibility with access control
A compact rolling barrier that secures an opening without making it visually disappear.
Rolling security grilles protect storefronts, counters, parking areas, and interior zones while preserving light, airflow, and visibility through the curtain.
Preliminary planning information. Exact sizes, clearances, gauges, thermal values, finishes, and operators require an approved manufacturer/model and verified field dimensions. Revision: Draft 2026-08-01.
Where it fits
BPT reviews how people, vehicles, inventory, weather, security, and the building structure come together before narrowing the product line.
Standard planning basis
Available options
Materials and operation
Material, finish, insulation, operator, controls, and seals must work with the selected opening, traffic pattern, exposure, and maintenance plan.
Linked rods, bars, or grille modules in an open pattern; material and spacing depend on the approved product line.
Formed or extruded components selected for curtain type, opening size, mounting, and locking needs.
Clear anodized, painted, powder-coated, stainless, and other finishes depend on the selected assembly.
Choose a solid or insulated rolling curtain when weather, air movement, privacy, or temperature control is a primary performance requirement.
Suited to smaller, balanced grilles where daily hand operation is safe and practical.
Provides mechanical advantage for larger openings without electric power.
Supports frequent use and can coordinate with access controls, limits, safety devices, and emergency procedures.
Planning dimensions
Do not reserve only the clear opening. The coil, brackets, guides, operator, hood, service access, and nearby building systems all require coordination.
Verify clear width, grille deflection, guide support, and structural attachment.
Confirm coil diameter, brackets, hood, structure, ceiling, and operator location.
Drive-side motor, chain hoist, locks, and service access may increase the requirement.
Confirm curtain capture, mounting angle, finish, anchors, and public-area clearances.
Coordinate access control, emergency release, public egress, and after-hours procedures.
Generic rolling-door baseline
Use these ranges only to reserve preliminary space. The selected manufacturer, model, opening size, wind or fire requirements, operator, and field conditions control the final dimensions.
Opening coordination
Opening viewShows the open lattice curtain, guides, hood, bottom bar, and typical operator location as one assembly.
Open full drawing
Section viewShows how the grille coils above the opening and travels through the guide to the finished floor.
Open full drawing
Detail viewShows the typical jamb, mounting angle, anchors, guide channel, and captured grille rod in plan.
Open full drawingRecord the rough opening, headroom, sideroom, mounting surfaces, overhead conflicts, and drive-side service space before selecting an assembly.
Show the wall and lintel, barrel and brackets, hood, curtain path, guide, bottom bar, floor line, seals, and operator projection.
Show opening limits, both guides and fasteners, bracket-to-bracket hood width, curtain slats, bottom bar, and drive-side operator.
Show the jamb material, wall angle, guide channel, anchors, curtain edge, operating gaps, and windlocks when the approved design requires them.
Component anatomy
Linked rods, bars, or modules create a visible, ventilated moving security barrier.
Vertical channels mounted to the jambs guide and retain the grille curtain during travel.
The steel pipe houses springs that counteract curtain weight for controlled operation.
Steel plates support the barrel assembly and manual or powered operator.
A metal enclosure protects the coiled grille and barrel while finishing the head of the opening.
The reinforced lower member stabilizes the grille and carries the selected locking hardware.
Push-up, chain-hoist, or electric operation is selected around size, cycles, controls, and safety.
Field context

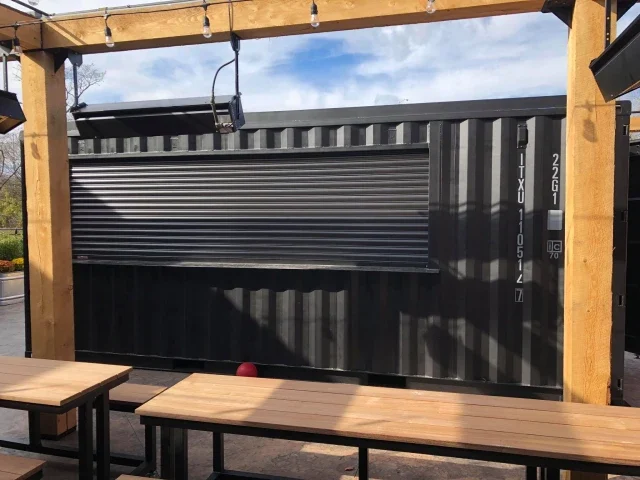

These BPT field images show the kinds of conditions that influence the final recommendation. Confirmed insulated-product photography will replace planning-context images after asset approval.
Architect and contractor resources
Review applications, decisions, component anatomy, coordination notes, and diagrammatic elevations before requesting a project-specific quote.
Category-level planning information only. Exact curtain pattern, dimensions, finishes, locking, controls, and egress provisions depend on the selected manufacturer/model and verified field conditions.
Manufacturer and project-specific technical approval requiredAdded after Jovany confirms the approved manufacturer and model.
